W6LVP Amplified Receive-Only Magnetic Loop Antenna – Portable Version




No compromises for a portable receive antenna that is small, light, and battery powered.

W6LVP amplified receive-only magnetic loop – portable version:

  • Great tool to fight noise. Rotate the loop for minimum noise.
  • Loop preamp and power inserter are optimized for low-current yielding longer battery life operation.

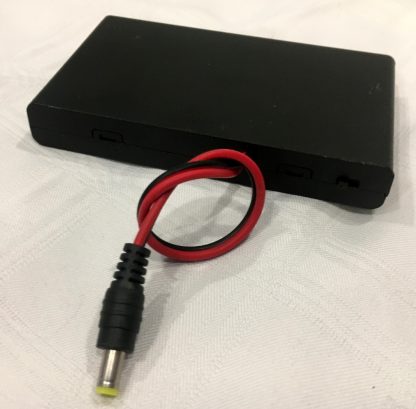

  • Includes a switched 8 x AA battery pack. (Batteries not included.  Requires 8 AA alkaline or rechargeable batteries.)
  • Six-foot circumference (approximately two foot diameter) loop.  Small size loop fits into a backpack
  • The LMR-400 coaxial cable loop is rigid enough to maintain its shape but flexible for easy portable transport.
  • Includes a low-noise, broadband amplifier covering 2200 meters (135 kHz)  through 10 meters (30 MHz) with no tuning or adjustment.  Perfect match for continuous tuning SDR receivers.
  • Light-weight antenna structure fabricated from furniture-grade PVC yields a strong but very light antenna weighing less than two pounds (not including power inserter or battery pack).
  • Compatible with a low-cost speaker tripod (not included) or DIY PVC H-frame stand.
